Precision Heavy Mobility

The Gulf
Land Bridge

Cold Chain  ·  Heavy Haulage  ·  Real-Time Visibility

Asset-backed fleet operations across GCC corridors — every sea reefer in our custody monitored live for temperature, genset status, and GPS position.

Container Telemetry — Live Feed
LIVE
AEJEAJebel Ali Port
62%
SAJEDJeddah Islamic Port
Internal Temp
-17.8°C
Setpoint (Client)
-18.0°C
Genset Status
● RUNNING
460V / 3φ
Fuel Level
74%
~18 HRSETA
24.45°N45.23°EGPS
30 SECInterval
Genset OK
GPS Active
Temp OK
// 01 — Operational Baseline
1,400 KMDubai–Jeddah
72 HRSJeddah Transit
460V / 3φISO Reefer Power
30 SECData Interval
12 UNITSFleet Capacity
// 02 — Service Architecture

Two Operations. One Network.

60% Iron Core  ·  40% Arctic Shield

HVMO
60
// 60% of Operations · Heavy Haulage
Iron Core
The High-Volume Backbone
  • Container Haulage · 20ft, 40ft, High Cube
  • Curtainsider FMCG Operations
  • Project Cargo · Flatbed Operations
  • Skeletal & Flexi-Skeletal Frame
12 Units·3 Trailer Types·GCC Corridors
40
// 40% of Operations · Cold Chain
Arctic Shield
Temperature-Controlled Land Bridge
  • ISO Sea Reefer Transport
  • Pharmaceuticals & Life Sciences
  • Advanced Electronics & Tech
  • Premium Perishables & Cosmetics
Genset Running460V / 3φ
74%Monitoring Live
// What No Other GCC Operator Delivers
CapabilityTeltonika
Alone
Carrier /
TK OEM
Other GCC
Operators
Arctic
Shield
ISO 10368 reefer data — live (paid sub)
Live 4G on GCC land bridgetruck power only dark
Visibility when engine off solar
Genset health monitoring
Remote genset start / stop unique
Cold chain PDF — HACCP/GDP (paid sub)
Client dashboard — live hvmo.ae
No hardware on client containerN/A
// 03 — Operational Network

The Network Is Live.

Disrupted  ·  Strait of Hormuz
Disrupted  ·  Red Sea Corridor
Operational  ·  GCC Land Bridge
Active Corridor
Planned Expansion
GCC Corridor MapBATHAKUWAITDOHAKHOR FAKKANFUJAIRAHDAMMAMYANBUJIZANJEDDAHRIYADHSALALAHJEBEL ALI
Dubai → Riyadh
3 DAYS
incl. Batha border
Dubai → Jeddah
4–5 DAYS
incl. Batha border
Dubai → Salalah
2–3 DAYS
via Oman corridor
// 04 — Fleet Composition

BUILT TO MOVE. READY NOW.

VOLVO FH 460 · GEN 3 · GLOBETROTTERGCC Registered · Wet Lease
Euro 6I-ShiftArctic Shield Ready
Volvo FH 460 Gen 3 wireframe
TECHNICAL SPECIFICATION
ENGINED13K · 460hp
TORQUE2,300 Nm
GEARBOXI-Shift 12-spd
AXLE4×2 · 11.5T rear
CABGlobetrotter XL
EMISSIONEuro 6
GVW44,000 kg
FUEL TANK2× 450L
FIFTH WHEELJost JSK 37
TELEMATICSArctic Shield
2-AXLE FLEXI SKELETAL
40FT · ISO TWIST LOCKS
2-AXLE FLEXI SKELETAL
Flexi Frame
Sea Reefer Ready
Arctic Shield Compatible
25T
3-AXLE FLEXI SKELETAL
40FT · ISO TWIST LOCKS
3-AXLE FLEXI SKELETAL
Flexi Frame
Heavy Load Rated
Arctic Shield Compatible
40T
3-AXLE FLATBED
40FT · LASHING POINTS
3-AXLE FLATBED
Project Cargo
Out-of-Gauge Ready
Container Capable
40T
3-AXLE CURTAINSIDER
40FT · FULL SIDE ACCESS
3-AXLE CURTAINSIDER
FMCG Operations
Rapid Loading
Palletised Freight
40T
// 05 — Arctic Shield Technology

ZERO BLIND SPOTS.

Three layers. One system. Container visible 24/7 — engine on or off.

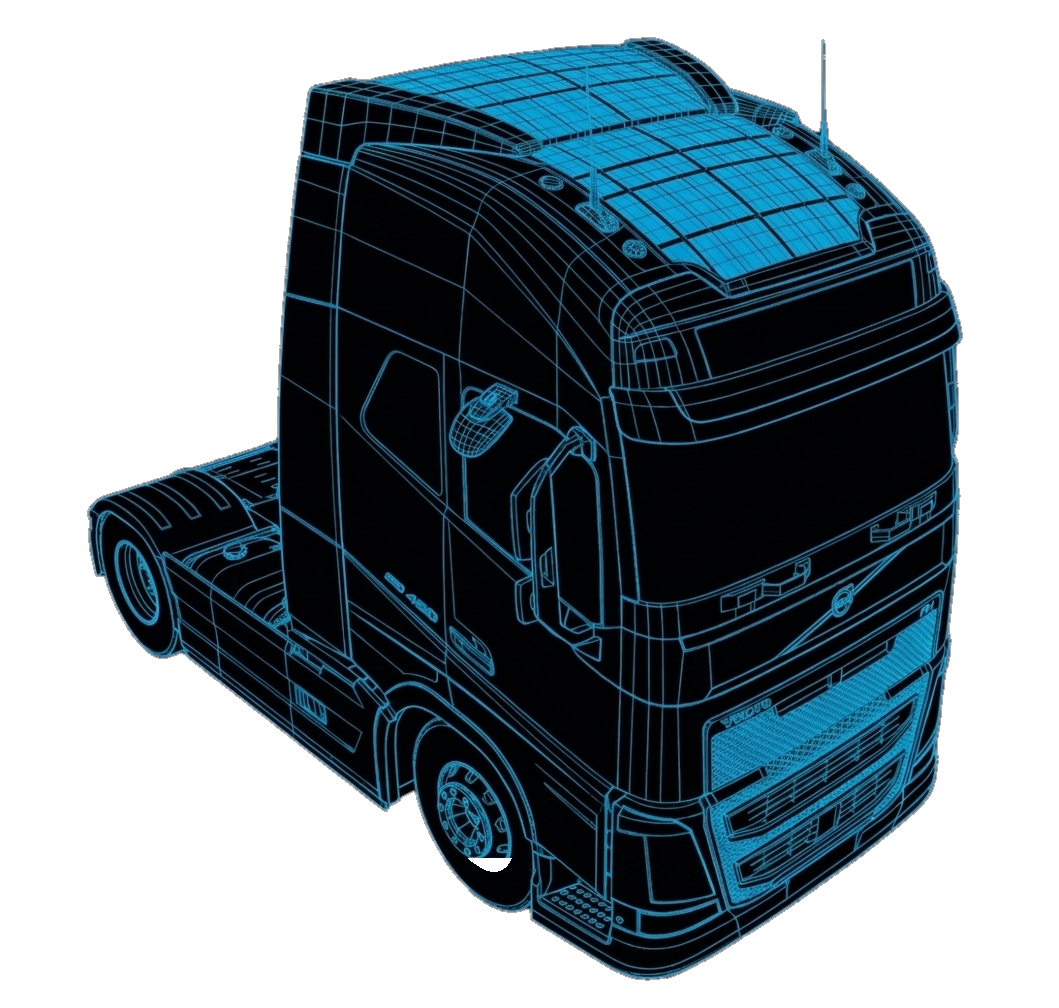

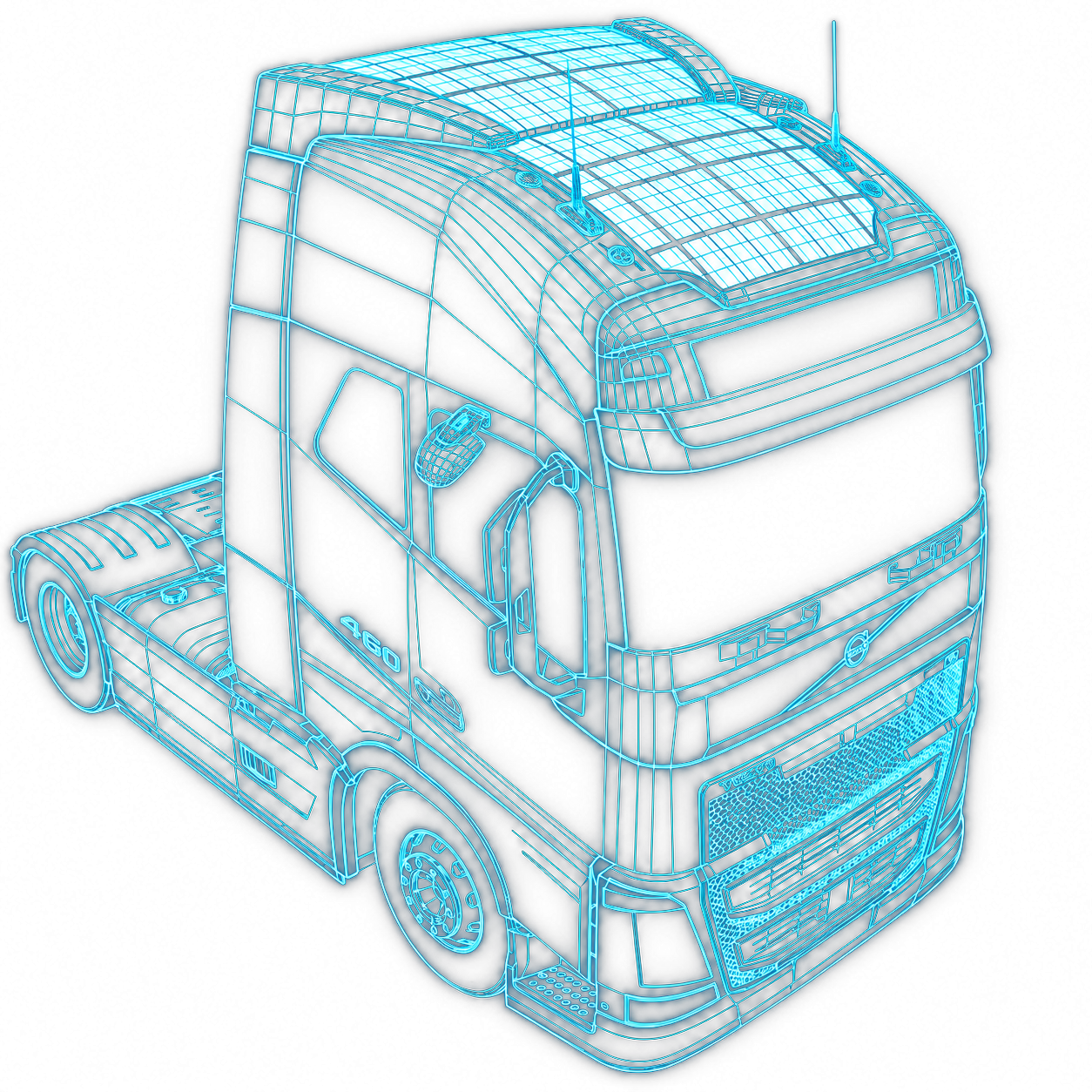

Volvo FH 460 Globetrotter with Arctic Shield solar panel
Layer 1 — Power
ALWAYS ON POWER
Container visible 24/7 — engine on or off
~340WPeak Output
~1,589WhDaily Harvest
42 hrsDark Autonomy
ZeroRoof Penetrations
Panel~1.33m² · ETFE · HPBC 26% · 20Vmp
Mounting3M Dual Lock · 15mm neoprene thermal break
ControllerVictron MPPT 75/10
Battery4× 32700 LFP · 76.8Wh · 12.8V

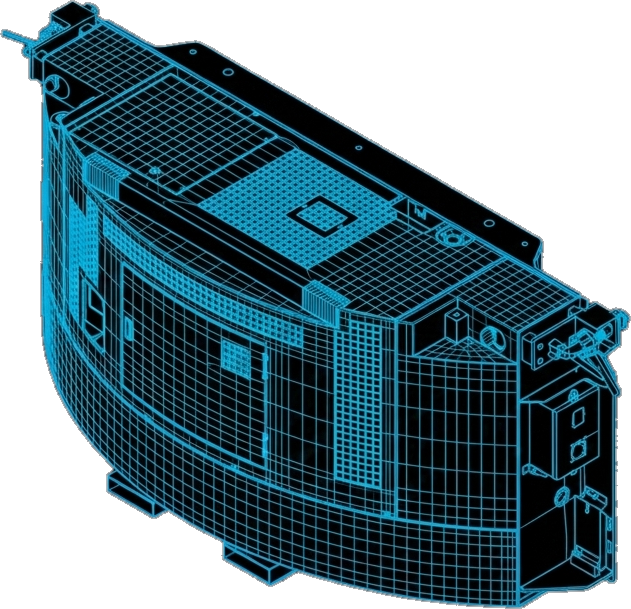

Ever Power RG15K clip-on reefer genset

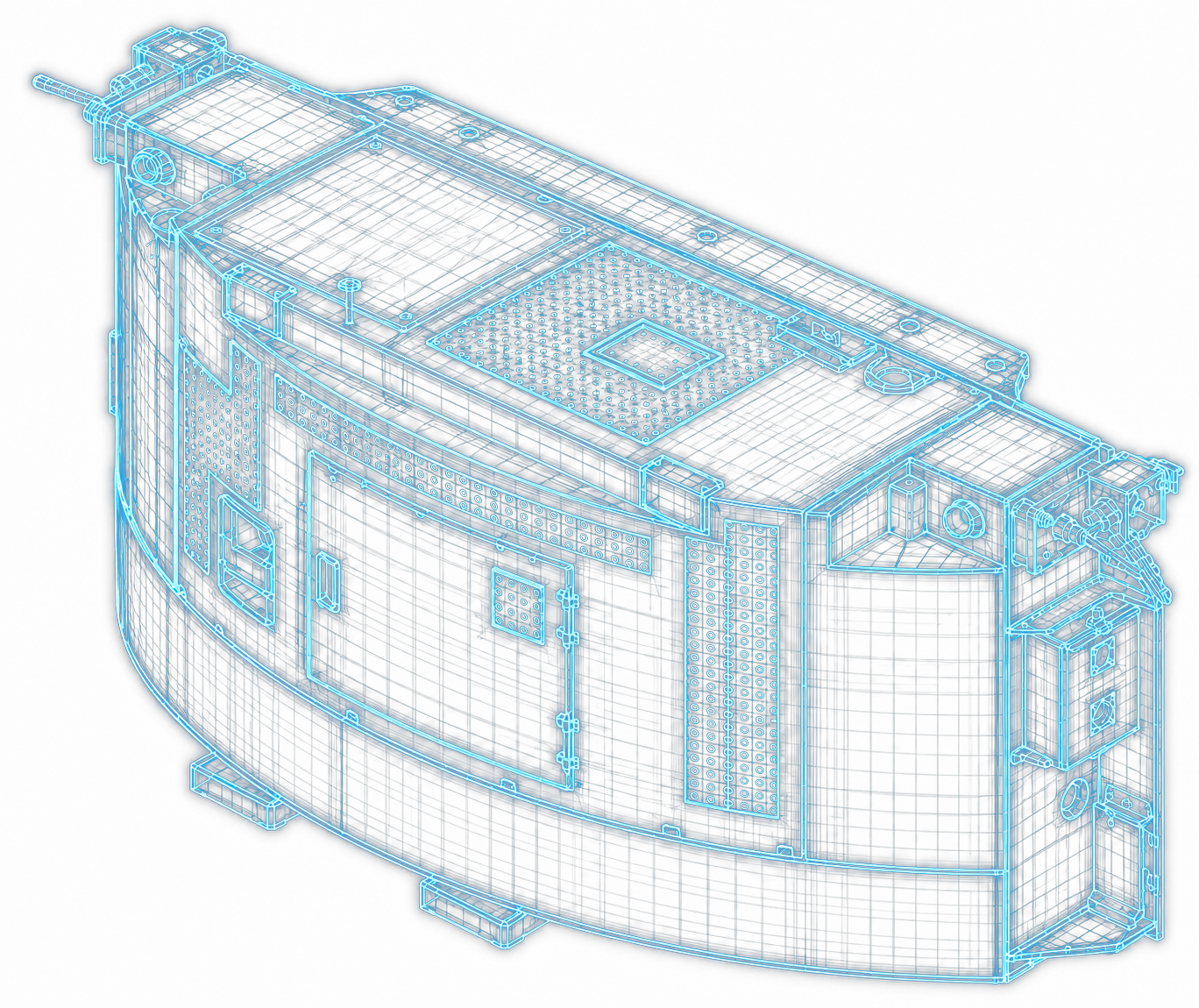

SKELETON FRAME MOUNTED REEFER GENSET
EVER POWER RG15K
Kubota V2203 · SmartGen 4010NC · IP65
15 kWContinuous
460V3-Phase 60Hz
10+ daysFuel Autonomy
EngineKubota V2203 · 4-cyl · 2.197L · 26.5kW
AlternatorRF-20-4 · Brushless · Self-exciting
ControllerSmartGen 4010NC · RS485 Modbus RTU
RemoteStart · Stop · Auto mode · Reset alarm
Physical2320 × 1080 × 750mm · 810kg · IP65
Fuel tank450L · 1.5–2.5 L/h consumption
★ Unique capability
Full remote start / stop from driver cab or HVMO dispatcher desk. 3–8 sec round-trip over 4G. No other GCC cold chain operator has this assembled.
Layer 2 — Data Acquisition

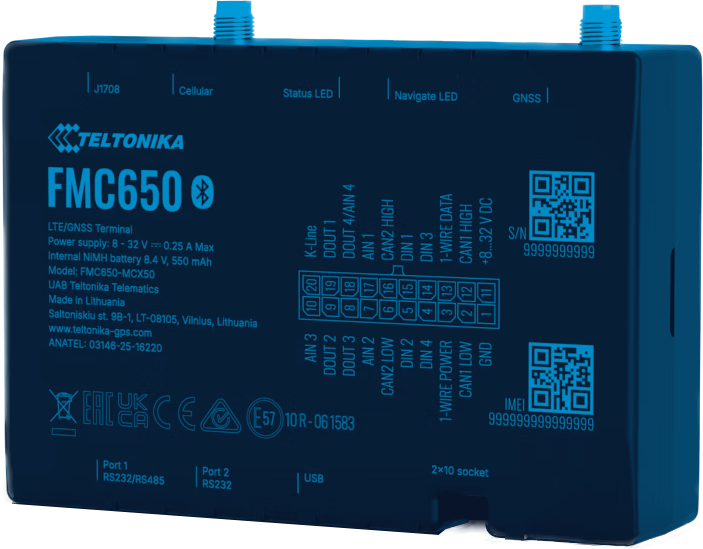

TELTONIKA FMC650
Teltonika FMC650 4G LTE tracker
RS232 COM1ISO 10368 · Carrier Vector
RS232 COM2ISO 10368 · Thermo King
RS485 COM3SmartGen 4010NC Modbus RTU
CAN J1939Vehicle ECU · FMS
GNSSSeparate module · L1+L5
4G LTECodec 8E + 12 · OCI VPS
Reefer dataSupply / return / setpoint / doors / alarms
Genset dataV · Hz · kW · RPM · oil · coolant · fuel%
CoverageCarrier + Thermo King · 95%+ global fleet
Powered byTeltonika
Layer 3 — Visibility
OCI VPS + DASHBOARD
// What your operations team sees — live
Container Telemetry — Live Feed
LIVE
AEJEAJebel Ali Port
62%
SAJEDJeddah Islamic Port
Internal Temp
-17.8°C
Setpoint (Client)
-18.0°C
Genset Status
● RUNNING
460V / 3φ
Fuel Level
74%
~18 HRSETA
24.45°N45.23°EGPS
30 SECInterval
Genset OK
GPS Active
Temp OK
ServerOCI Abu Dhabi · Node.js · Ubuntu
Port 5027Codec 8E → Reefer + GPS → Postgres
Port 5028Codec 12 → Modbus → Genset → Postgres
CompliancePDF export · HACCP / GDP compatible
Remote ctrlGenset start · stop · reset · 3–8s latency
Data flow
Sensor4G LTEOCI Abu DhabiJSON APIClient Portal
// 06 — Comfort Power

ENGINE OFF.
CAB AT 22°C.

Every HVMO truck carries a proprietary energy management system that captures alternator waste during transit and delivers silent overnight cab power — zero idling, zero fuel burn, verified CO₂ elimination.

The GCC Night Problem

At 48–52°C ambient the only option is engine idle — all night — just for AC. 5 L/hr × 8 hrs × 300 nights = 12,000 litres per truck per year. Producing nothing useful.

12,000L

Diesel wasted / truck / year

AED 110

Fuel cost per night at idle

~29T

CO₂ per truck per year

Three-Source Charging Architecture

Source 01 — Primary

Alternator Harvest

2,511W

Safe surplus via 2× Victron Orion-Tr Smart 24/24-70A

J1939 load-aware throttling via ESP32. Engine never overloaded. Restores full bank in ~4.7 hrs on the Dubai–Jeddah run.

Source 02 — Overnight

RG15K Genset Tap

600W

Single-phase tap from Ever Power RG15K 3-phase output

Genset already running for reefer at near-zero marginal fuel cost. Recovers ~6.0 kWh over a 10-hour rest stop.

Source 03 — Always On

Solar Maintenance

340W

HPBC ETFE flexible panel, ~1.20m² cab roof

Primary role: power RIGID LC3220E-H battery chiller, FMC640, ESP32, and BMS 24/7. ~1,589 Wh/day. Zero draw from main bank.

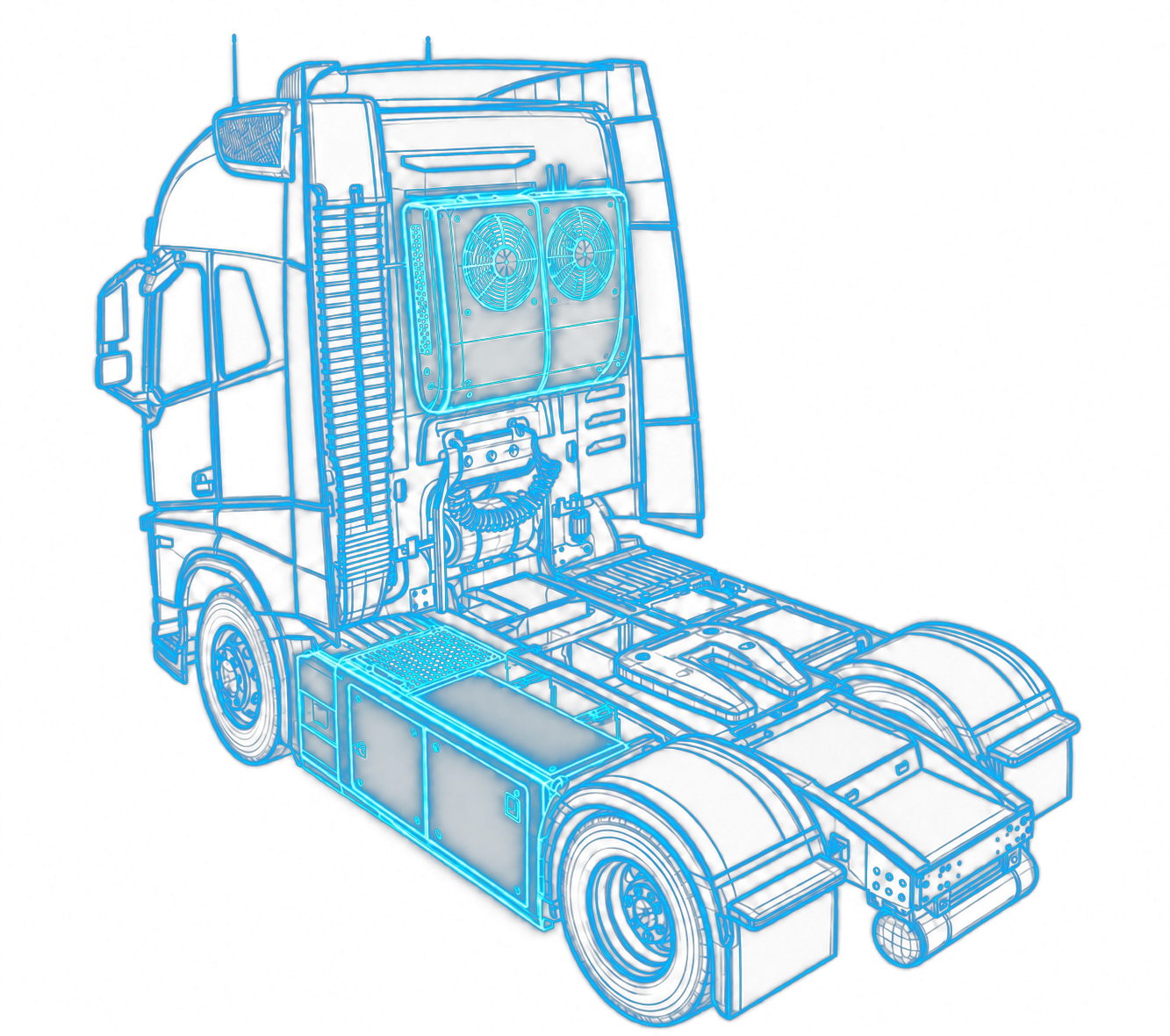

LFP Powerwall — Cab Rear Wall

28.8 kWh

32× EVE LF280K · 8S2P × 2 packs · 8,000 cycle life

Usable (80% DoD)22.9 kWh
Overnight AC consumption~10.5 kWh
Bank after overnight77% remaining
Thermal managementRIGID LC3220E-H liquid chiller
Recharge on route~4.7 hrs driving

Cabin AC — Guchen 8kW DC Scroll Hybrid

27,300 BTU

Matches Volvo FH factory system capacity exactly

TypeDC scroll · 24V native · no inverter
Hybrid switchingAutomatic via check valves
Steady-state draw~860W avg (22% duty cycle)
Factory evaporatorRetained — no cabin space lost
Desert condenser1,000×450mm · 10 FPI · epoxy coated

Fleet ESG Metrics · 9 Trucks · Annual · Audit-Grade J1939 ECU Data

97,200LDiesel eliminatedper year fleet-wide
~260TCO₂ avoidedScope 3 Category 4
AED 270KFuel savingper year fleet-wide
16,200hIdle hours savedengine wear eliminated
14,454kWhSolar generatedrenewable on every truck
86 daysPayback periodper truck hardware cost

On Electric Fleet Transition

Battery-electric is not commercially viable on the Jebel Ali–Jeddah corridor today — no charging infrastructure, insufficient range at GCC ambient temperatures under reefer load, and a 5–7 year timeline to viability. Comfort Power delivers verified, measurable, auditable CO₂ reduction on this corridor now. When EV infrastructure arrives, the data infrastructure is already built. The transition is a hardware swap, not a capability rebuild.

// 07 — Operator Profile

Engineered For
Consequence.

HVMO was built to bridge the gap between traditional transport execution and operational intelligence. Founded in 2023 and headquartered in Dubai, UAE, we connect ports, industrial zones, and critical supply chains across the Gulf — with visibility that legacy operators have never offered and accountability built into every movement.

We engineer transport solutions, not dispatch runs. Every movement runs on an asset-backed, single-operator custody model — route execution, compliance documentation, live telemetry, and proof of delivery treated as a single end-to-end project from first contact to final confirmation, covered end-to-end by cargo, CMR, and reefer indemnity insurance.

Cold chain is not a logistics category. It is pharmaceuticals reaching patients. Food staying safe in transit. Electronics arriving intact. We treat it accordingly.

Licensed under UAE Federal Transport regulations across GCC corridors, every truck runs on Teltonika FMC640 telemetry over 4G LTE, streaming to infrastructure hosted in OCI Abu Dhabi.

Electric heavy transport is the trajectory we are building toward. Cleaner corridors. Lower emissions. The same operational reliability. The data infrastructure we build today is the foundation for a long-term mobility ecosystem across the Gulf.

// What Sets Us Apart
// 01
Not a Legacy Operator
Built from first principles — asking what heavy transport looks like when designed right from the beginning.
// 02
Technology as Standard
Live telemetry every 30 seconds. Not a premium add-on. Standard operating procedure on every movement.
// 03
Mechanical Foundation
Deep technical understanding of what powers the equipment, what fails under load, and why. Combined with IoT monitoring to eliminate blind spots.
// 04
Future Direction
Electric heavy transport. Cleaner corridors. The data infrastructure built today carries that transition across the Gulf.
Movement. Precision. Continuity.
Heavy Mobility LLC · DED Dubai · UAE Trade Licence · hvmo.ae
// 08 — Dispatch

Move Freight Across the Gulf.
Talk to dispatch.

Dispatch
dispatch@hvmo.ae
Operations
+971 4 227 8416
Address
901-73, Level 9 Iris Bay Tower, Al Mustaqbal St. 145 Business Bay, P.O. Box 77646  Dubai, UAE
